Powerful radio tracking receiver that is pocket sized and very easy to use. Works with all UHF transmitters from 430 - 439 MHz and can memorize up to 100 channels. Type in your transmitter frequency and the receiver will automatically collaborate with it and store it. Simply change transmitter to track at the touch of a button. Also has automatic scan function.
Has a digital display that shows signal strength, numerical gain indicator (0-99) and the birds name.
Easy to use, extremely reliable, compact and the best value for money on the market.

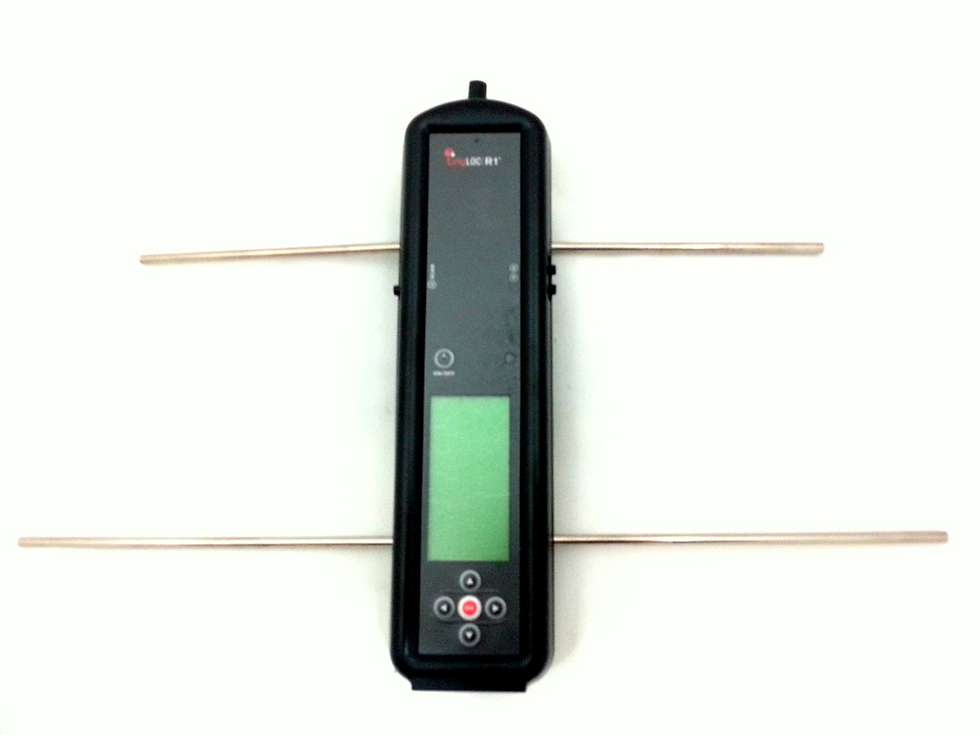

TINYLOC RECEIVER R1+ GYR 430-439 MHz
- Digital receiver with high performance, easy to handle and very reliable.
- The radio tracking receiver turns the electromagnetic sign from the transmitter into an acoustic and digital signal, to be used to identify the direction of the signal where the bird carrying the transmitter is located.
- Every emitted signal by the transmitter is received acoustically to the speaker and visually through the smitter bar. It makes the search of our animals something accurate and fast. with a numerical (0-99) showing the gain and strenght of the signal.
- Easy to use in any field. Easy to handle with only one hand.· Internal powerful antenna which provides high sensitivity and accuracy.
- Memorize up to 100 birds/transmitters (100 memories, with over 2,700 channels).
- It works with standard AA alkaline cells, or rechargeable cells approved by Tinyloc, so if you run out of battery in the field you can change them immediately.
- Automatic backlight display (with outdoor sensor light).· DDC: It has an effective system for detecting the right direction (DDC), through numeric values which help to find the precise direction, avoiding problems related to maximum field rebounds.
- Automatic calibration: the receiver can automatically calibrates the transmitters, detecting any small variation in its frequency, increasing its performance.
- A symbol in the display shows when the battery level is low.
- Allows transmitters from other manufacturers in the frequency of 432, 433 and 434 MHz.· 5 cm accuracy when locating a transmitter.
FREQUENCY RANGE
430.000 - 439.999 MHz
CHANNELS AND MEMORIES
10.000 channels / 100 memories
AUTONOMY
25-50 HOURS. Indefinite when connected to car lighter.
POWER SUPPLY
6 V. / 4 Batteries 1,5 V LR6 (AA)
SENSITIVITY
-145 dBm
PROTECTION RATING
IP20 (keep from water and snow with a case or plastic bag)
WEIGHT WITH BATTERIES
534 gr.
DIMENSIONS (with bent antenna)
245x66,5x40 mm
WORKING TEMPERATURE
-15 ºC to 50 ºC
KEEPING TEMPERATURE
-20 ºC to70 ºC
CONNECTOR
Mini-USB, earphones audio 3,5 mm., SMA external antenna
ACCURACY
5 cm., maximum accuracy
COMPATIBLE TRANSMITTERS Tinyloc MINIHOND (hunting dogs)
Tinyloc F22 (falconry)Tinyloc HOUND FINDER RT+GPS (only radio tracking mode)
Tinyloc HOND GPS (out of range collar, only radio tracking mode)
Tinyloc HOND BASIC (out of range collar)
Radio Tracking transmitters of any other manufacturer working on frequencies range from 430.000 to 439.999 MHz.GENERAL WARRANTY CONDITIONS
Tinyloc devices are guaranteed for two years from the date of purchase by the user.
In case that battery is a rechargeable type, this will have one year warranty. When the purchase has been made through the web www.tinyloc.com, buyers have 15 days to test the product from the time the order has been released to make a return. In case of exchange or refund, you must return the product back in its original packaging with all accessories, instruction manuals and documentation. For its collection, please contact our sales support service. Refund will be given in the same way customers have made the payment. For other cases, regulations in each country or guarantees from the seller will apply.
Tinyloc equipment warranty covers factory defects in components and labor, provided that the use of the product by the user has been adequate.
Any action carried out in the factory on Tinyloc devices within a 24 month period, will not extend the original warranty in any case. Any repair has a warrant for six months over the same issue repaired.
The warranty DOES NOT COVER IN ANY CASE:
- The loss of an equipment component.
- Damage caused to the equipment by the animal itself.
- Accident, misuse or neglect of the equipment by the user.
- Manipulation or alteration of equipment assembly.
- If the product is not waterproof, damage caused by the presence of moisture or water in the internal components.
- Problems caused by external agents: natural disaster, fire, collision, flood, lightning…
- Transportation of equipment without proper protection.
THE GENERAL WARRANTY CONDITIONS SHALL ONLY APPLY IF THE MALFUNCTIONING DEVICES ARE DELIVERED TO THE FACTORY ALONG WITH THE APPROPRIATE INVOICE INCLUDING THE SERIAL NUMBER.
In order to offer a better technical service, we advise you to attach an explanatory note with the details of the fault or anomalies in the operation of device. We suggest to check the equipment correct operation with the instructions manual.
